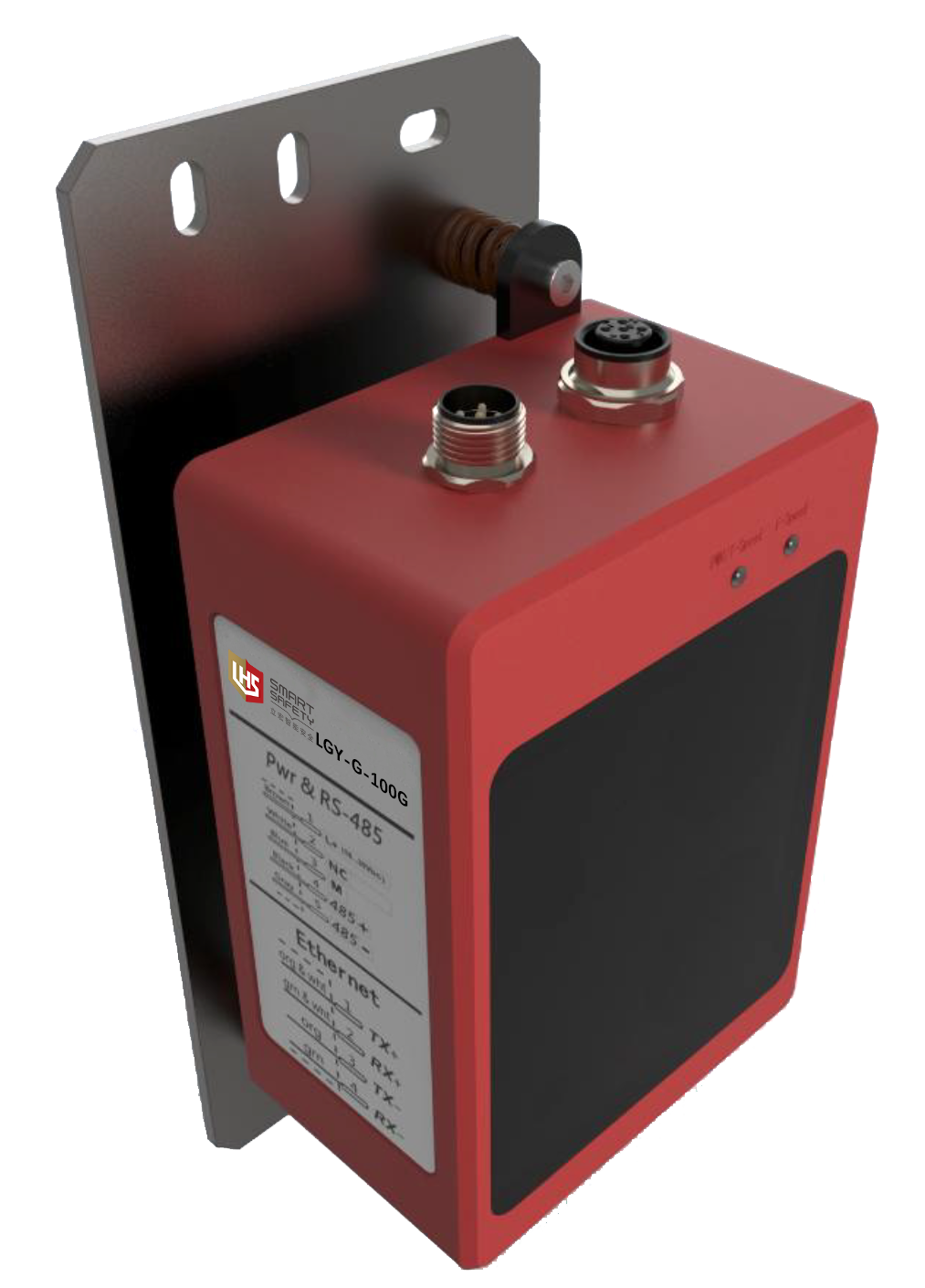

GBY-G series optical communication sensor

·Red indicates that the light source can achieve rapid alignment.

·All-metal structural parts and all-glass lenses are adopted, which is extremely stable.

·Wide working temperature-40 ~+55.

▊	Product selection table

working distance	type	transmission speed	joggle/interface	Working temperature	model
0.2-100m	laser	100 Mbit/s	Ethernet	-40℃...+55℃	LGY-G-100G
0.2-200m					LGY-G-200G
0.2-100m	LED	10 Mbit/s	Ethernet	-40℃...+55℃	LGY-G-100L
0.2-200m					LGY-G-200L

▊Industrial application

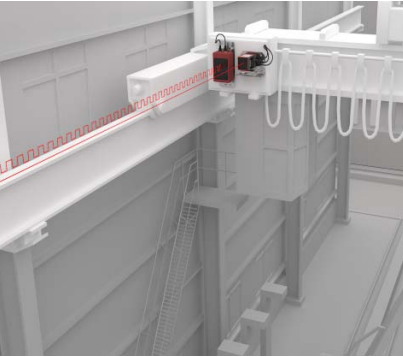

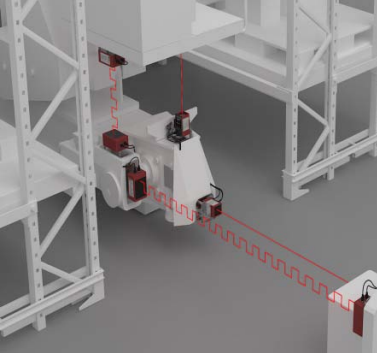

Industrial application of stacker	Application of crown block industry	RGV Industrial application

▊technical parameter

performance parameter
range	100rice	200rice
Communication angle	±1.2°
launcher	laser
receiver	photodiode
Laser spot	25m@0.46m(oval)
	100m@1.87m(oval)
	200m@3.74(oval)
Indicating light source	Wavelength: 635nm
Laser grade	Secondary laser
	IEC 60825-1:2014, EN 60825-1:2014
Laser lifetime	100'000h @ 25℃
Interface parameters
EtherNET/IP	Network load level	II
	function	Measurement data output, parameter setting
Communication bandwidth	10Mb/100Mbself-adaption	Optical port transmission bandwidth 100Mb/s
RS-485	Baud rate	115200
	data bit	8
	Stop position	1
	Check Digit	without
	fluid control	without
	function	Measurement data output, parameter setting
Mechanical/electronic parameters
supply voltage	DC 18V…30V
power	< ＜10W (at 24VDC)
Initialization time	Typ. 5s
Connection type	A code 5-pin M12 plug
	D-coded 4-pin M12 plug
sheathing material	Aluminum die casting
the protection grades	IP65
weight	750g
Working temperature	-40℃…+55℃
Storage temperature	-45℃…+85℃
Electromagnetic compatibility (wireless)	EN 55032:2015,EN61000-3-2:2014,EN 61000-3-3:2013,EN 55035:2017

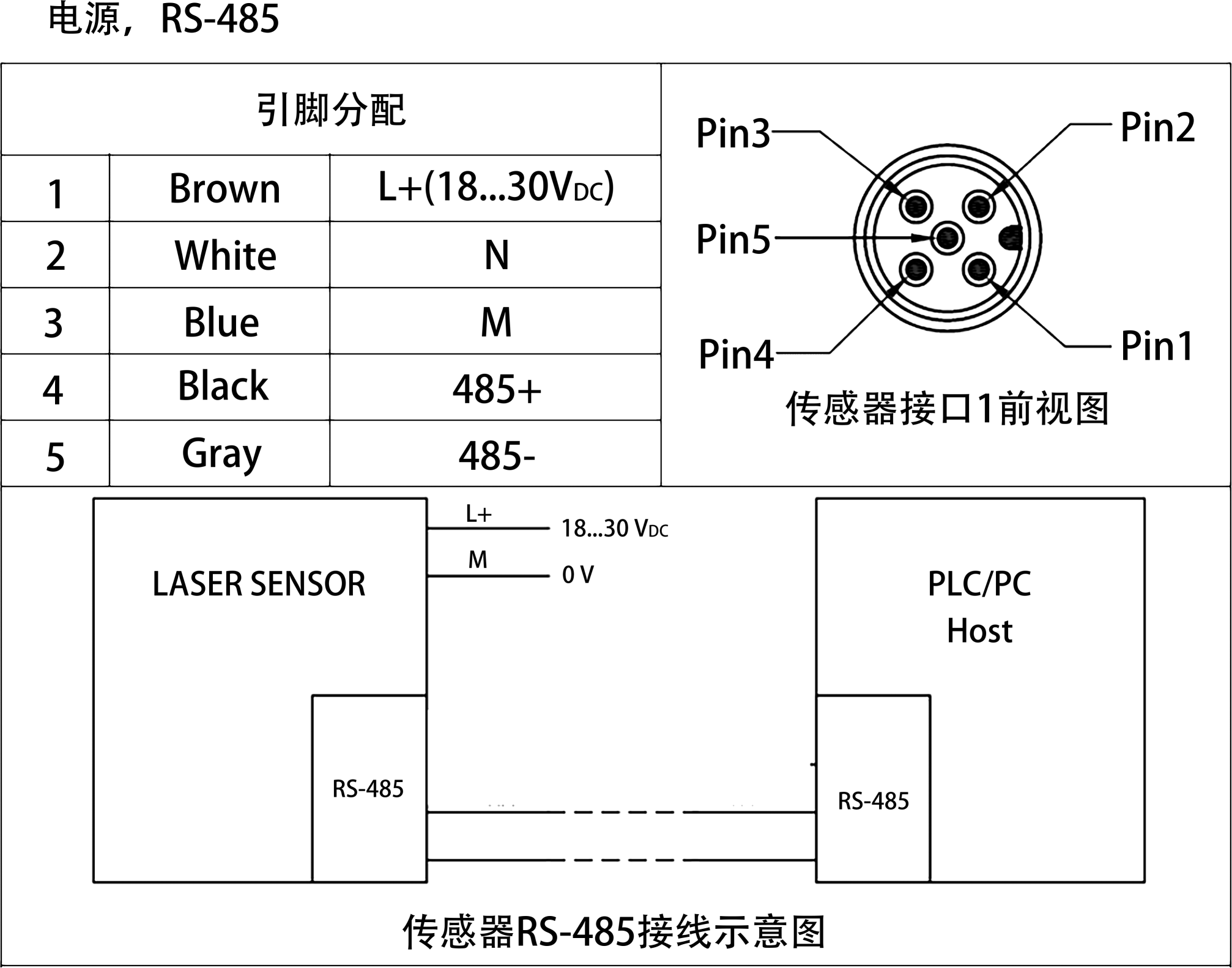

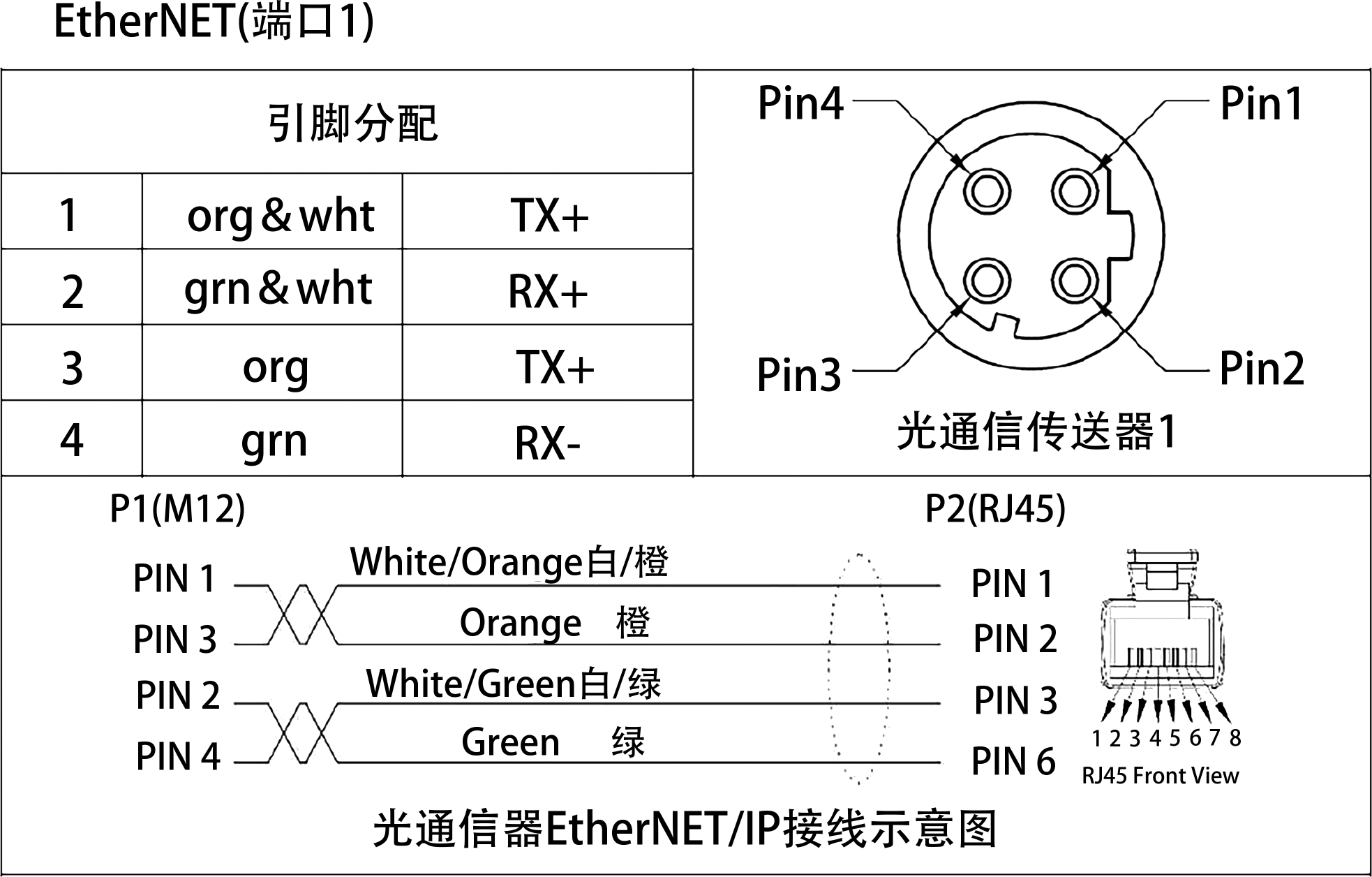

▊Schematic diagram of pin distribution and wiring

▊Optical Communicator Indicator Description

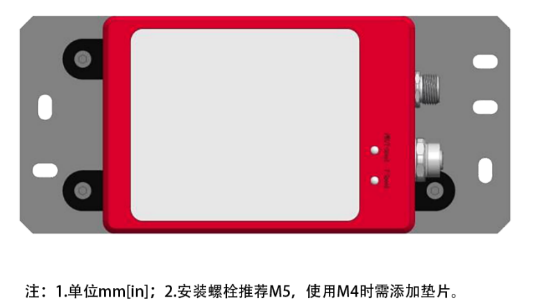

①Installing bottom plate

②Network port signal line;

③Power cord and RS485 interface (only used for factory debugging);

④Red laser light;

⑤Transmitting and receiving window;

⑥Indicator light;

The indicator LED is displayed as described in the following table.

Indicator light	condition	meaning
PWR(red)	Changliang	Power on normally
F-Link(green)	Always on/off	Related signal/dull signal
F-speed(green)	Always on/flashing	Relevant signal/data transmission
T-Link(green)	Always on/off	Network communication is normal/abnormal
T-speed(green)	Always on/flashing	Network communication is normal/there is data transmission on the network.

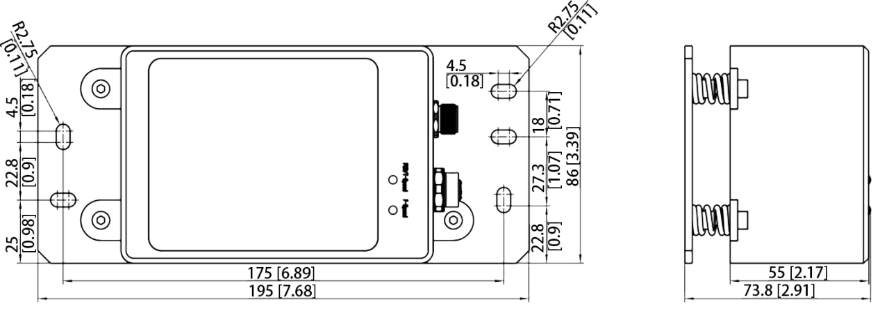

▊Product dimension diagram

▊Installation example

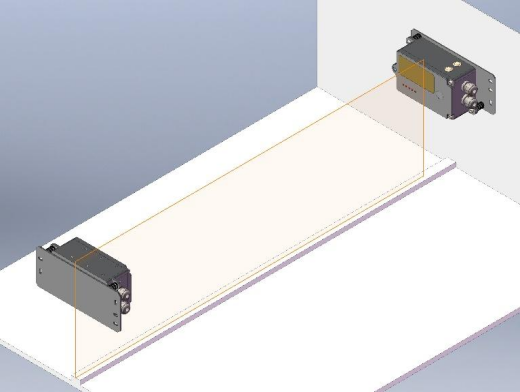

This optical communication module can be installed vertically or horizontally, and the user can choose according to the actual situation. Here is an example of installing two optical communication modules horizontally. When installing two optical communicators (a pair), the outlet direction should be in the same direction and face up (down) or left (right) at the same time, as shown in the following figure.
